Characterization of new cardioprotective principle isolated from methanolic extract of Allium humile leaves from Himalayan region
In modern era scientists have been trying to validate many properties of Allium species, especially in terms of the identity of the active components, their mechanism of action and exploring the potential benefits as food supplements. Thus, the present study has been designed to characterize the isolated cardioprotective compound from Allium humile leaves. Chromatographic purification of the methanolic extract of A. humile leaves isolated ajoene (enol form) (AH-1)- a new potent cardioprotective principle, along with three known compounds allicin (AH-2) and alliin (AH-3) and a flavonoid quercetin (AH-4). The structures of all the isolates (AH-1, AH-2) were characterized by using modern spectroscopic analysis UV, IR, 1H and 13C NMR and mass spectrometry. Furthermore, the new isolated compound pharmacologically conformed for cardioprotective effect. The data of known compounds (AH-2, AH-4) were further compared with the reported data for these compounds.
Coronary heart disease represents a global burden on healthcare resources and is poised to become the leading cause of morbidity and mortality in the world by 2020 (Hausenloy and Yellon, 2004). Myocardial ischemia is charachterized by decrease in coronary blood flow which is unable to meet the oxygen demand of myocardium (Mitra and Panja, 2005). The persistent myocardial ischemia leads to death of cardiomyocytes leading to myocardial infarction (Vaden et al., 2003). This can be due to atherosclerosis, hypoglycemia, tachycardia, hypotension, thromboembolism, sickle cell disease, arteriovenous malformations and peripheral artery occlusive diseases (Ambrosio and Tritto, 1999). Reperfusion is a prerequisite to salvage ischemic myocardium (Kloner and Dai, 2004). The strategies to maintain the coronary flow in ischemic myocardium commonly includes use of thrombolytic agents (Morrison et al., 2000) coronary artery bypass surgery (Tanaka et al., 2004) and percutaneous coronary interventions (Marzilli et al., 2000). Some conventional therapies also include the use of therapeutic agents like antiplatelate drugs (McQuaid and Laine 2006), β-blockers (Cruickshank, 2010), Ca2+-channel blockers (Buckley et al., 2007), ACE inhibitors (Laurence and Brunton, 2006), statins (Taylor et al., 2011), trimetazidine (Tuunanen et al., 2008). But as the disease progresses role of these drugs and therapies gets limited. Whereas prolonged use of these drugs is not always recommended. Role of alternative therapies is sought which includes controlled diet, exercise and botanical medicines which are more compatible to biological systems.
Allium humile is a small alpine plant of family Alliaecea. It is widely distributed to higher altitudes (3,000–4,000 m) of Himalayan mountain range (Nautiyal et al., 2001). Roughly 50 phytoconstituents have been reported in the genus Allium, which mostly belongs to organosulfur, proteins and amino acids, flavonoids, steroids, alkaloids and glycosides. Plant is also reported to possess good pharmacological effects on asthma, stomach disease, cough, jaundice, blood purification and microbial infection (Ćirković et al., 2012; Uniyal et al., 2006).
In our previous study, we have evaluated the cardioprotective effect of various extracts of A. humile in ischemia- and reperfusion-induced myocardial injury in rats. The methanolic extract (Dobhal et al., 2013), its fractions A4 (Dobhal et al., 2013), and isolated compound AH-1 were found to be effective in attenuating the release of creatine kinase-MB (CK-MB), lactate dehydrogenase (LDH) level in coronary effluent and reduced myocardial infarct size measured by volume method. These results encouraged us to extend our study for characterization of cardioprotective principle of AH-1 isolated from active methanolic exract of A. humile leaves.
Materials and Methods
Drugs and chemicals
All the reagents used in this study were of analytical grade and were always freshly prepared before use. Silica G mesh size 200–400 µ (HiMedia Lab Pvt Ltd) was used in column chromatography.
Leaves of A. humile was collected in November 2009 from Chamoli District, Uttaranchal, India. The plant material was identified from Botanical Survey of India, Northern Regional Centre, Dehradun, India with the reference No. BSI/NRC 9 (Tech.)/2010-03/ 839/12796.
Extraction and fractionation
The fresh leaves of A. humile were dried in shade at room temperature for 2 days followed by drying (40- 50°C) for 3-4 hours and powdered to obtained coarse powder. 980 g of powder of A. humile leaves were extracted with petroleum ether, chloroform, acetone and methanol successively using soxhlet apparatus. The solvents were removed by evaporation under reduced pressure to obtain semisolid masses. The resultant concentrates were kept in a separate desiccators followed by weighing to calculate the percentage yield of each extract in reference to air dried leaves of A. humile. All extracts were screened for their cardioprotective potential. Among all the extracts, methanolic extract attenuated myocardial injury. The methanolic extract (20 g) was further subjected to silica gel column chromatographic using CHCl3: MeOH (85:15) in an increasing polarity order to get four major fractions viz A1, A2, A3 and A4. These fractions were again screened for myocardial infarct size, LDH and CK-MB release in coronary effluent. Fraction A4 among all the fractions of methanolic extract significantly prevented myocardial infarct size, LDH and CK-MB release (Dobhal et al., 2013).
Isolation and characterization of compound AH-1
2 g of fraction A4 was subjected to column chromatography (40 x 100 cm) using silica gel mesh size 200-400 µ as adsorbent and chloroform and methanol (8:2) in different ratios as mobile phase leading to the isolation of three compounds confirmed on thin layer chromatography (SiO2). The isolated compounds were concentrated under reduced pressure to dryness and weighed. All the four compounds were assigned as AH-1 (225 mg), AH-2 (89 mg), AH-3 (81 mg) and AH-4 (73 mg). The cardioprotective activity was evaluated for all the four compounds in which compound AH-1 was found significantly effective in attenuating myocardial infarct size, release of LDH and CK-MB in coronary effluent than other compounds.
TLC study was conducted on the isolated compound AH-1 to find out any sign of impurity in it. A single florescent spot on UV-Vis chamber showed high purity profile of the isolated compound. Characterization of compound AH-1 from the fraction A4 of A. humile leaves was done using modern spectral (UV, IR, NMR, MS) analysis. The UV spectrum of the isolated compound was taken on the spectrophotometer UV– 250, Systronics, India. The IR spectra of the isolated compounds, in KBr, were taken on IR spectrophotometer (Systronics, India). The mass EI spectra of the isolated compounds were taken on Thermofinnigan LCQ, mass spectrophotometer (USA). The proton NMR and 13C spectra were taken on 400 MHz, (Bruker Avance II 400 NMR spectrophotometer, SAIF) using MeOD as solvent and TMS as an internal standard.
AH1a UV λ max nm: 266.
IR KBr υ cm-1: 3400, 2933, 2538 and 1633.
Mass (LC-MS) m/z (%): 277 [M] + (98%), 234 [M-COCH3] + (40%), 208 [M-COCH3-C2H4] + (30%), 150 [M-COCH3-C2H4-C2H4] + (30%).
1H NMR (MeOD, 400MHz) recorded signals for various protons such as 5.50 (d, 1H =CH-S-S), 5.48 (m, 1H =CH-CH2), 5.30 (m, 1H CH2=CH-CH=S-OH), 5.24 ( m, 1H CH2=CH-CH2-S), 3.65 (m, 2H CH=S-OH), 3.31 (d, 2H S-S-CH2) 2.02 (s, 3H COCH3).
13C NMR recorded in MeOD, 400 MHz gave signals for carbons δ: 126 (C-1), 126 (C-2), 48 (C-3), 204 (C-4), 124 (C-5), 122 (C-6), 42 (C-7), 133 (C-8), 118 (C-9), 170 (OCOCH3), 23 (COCH3).
The compound AH-1 from A. humile leaves was purified by recrystallization with methanol and a pale yellow colored crystalline solid was obtained. Purity profile of the isolated compound AH-1 was confirmed by TLC study which exhibited a single spot (Rf: 0.6) when carried out with methanol:chloroform (8:2) which was subjected to column chromatography. Compound AH-1 was obtained as gummy solid based on its LC-MS [M] + 234 and NMR data. Its molecular formula was determined as C9H14OS3 which indicated the presence of sulfur skeleton in the compound containing degree of unsaturation. Elemental detection test reveal the presence of sulfur in the aliphatic hydrocarbon moiety. The IR spectrum showed presence of hydroxyl at 3400 cm-1, S-H stretch at 2538 cm-1, double bond at 1633 cm-1, C-H stretch at 2933 cm-1. Because of gummy nature and solubility the compound was acetylated and its 1HNMR (Table I), 13C NMR (Table II) and mass were recorded. 1H NMR showed the presence of double bond by exhibiting signal between δ 5.0- δ 5.5 together with 13C NMR value between 118-133. Aliphatic multiplet of 2 proton each was observed at 3.3 and 3.6 assigned to 2 methine groups in the compound along with δC: at 48 and 42. Mass fragmentation pattern of compound AH-1a showed molecular ion peak at 276 corresponding to molecular formula C11H16O2S3 with major fragments at m/z 234 [M-COCH3]+ corresponding to ajoene, 208 [M-COCH3-C2H4]+, 150 [M-COCH3-C2H4-C2H4]+. Comparison of spectral data with already isolated compound ajoene (Ili´c et al., 2012) led us to establish AH-1 was ajoene (enol form) (Figure 1). This is first report of its kind from A. humile leaves.
Table I: 1H NMR (MeOD, 400 MHz) recorded signals of AH-1
|SL. No.||Chemical shift||Proton count||Splitting pattern||Assignment|
|3||5.30||1H||m||CH2 = CH-CH =S-OH|
|4||5.24||1H||m||CH2 = CH-CH2-S|
|5||3.65||2H||m||CH = S-OH|
Table II: 13C NMR (MeOD, 400 MHz) recorded carbon chemical shift of various carbons (δC)
|SL. No.||Carbon No.||δC values|

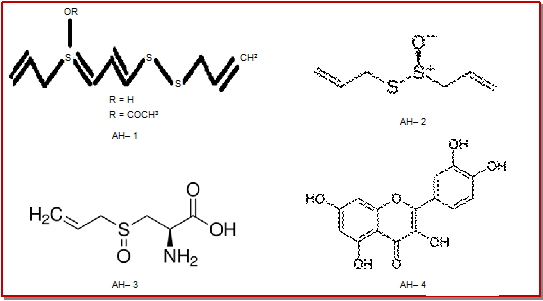

Figure 1: Chemical structures of compounds (AH-1 to AH-4)
Effect of ajoene on myocardial injury
Effect of ajoene on myocardial infarct size
Various extracts of A. humile leaves viz. petroleum ether, chloroform, acetone and methanol were evaluated on ischemia- and reperfusion-induced increase in myocardial infarct size, respectively. Among all the extracts methanol extract of A. humile leaves found to be active. Further purification of active extract was carried out using column chromatography which resulted isolation of four fraction viz. F1, F2, F3 and F4. Which were again evaluated for above said effect and among all the fractions fraction F4 significantly attenuated ischemia and reperfusion induced increase in myocardial infarct size. Further purification of fraction F4 resulted in isolation of AH1, AH2 and AH3. AH1 further evaluated for cardioprotective activity and it was more significant than other compounds. However, treatment with standard (ramipril, 1 mg/kg) was significantly more effective to reduce myocardial infarct size as compared to compound AH1, measured by macroscopic volume method (Figure 2).

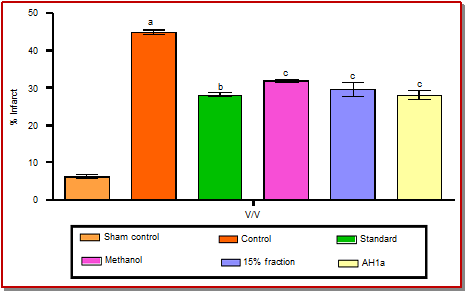

Figure 2: Effect of ajoene on myocardial infarct size. Infarct size was measured by volume method. Values are expressed as mean ± SEM. a = p˂0.05 vs. Sham control; b = p˂0.05 vs. Control; c = p˂0.05 vs. Standard. ANOVA followed by Tukey’s multiple comparison test
Effect of ajoene on release of LDH
Various extracts of A. humile leaves viz. petroleum ether, chloroform, acetone and methanol were evaluated on ischemia and reperfusion induced increase in release of LDH in coronary effluent measured immediately and 30 min after reperfusion, respectively. Similarly, among all the extracts chloroform extract of A. humile leaves and the isolated fraction F4 from chloroform extract significantly reduced the release of LDH in coronary effluent. Further, the active principle AH-1 isolated from fraction F4 of chloroform extract significantly attenuated release of LDH in coronary effluent measured immediately and 30 min after reperfusion. Moreover, treatment with ramipril (1 mg/kg) markedly reduced the release of LDH in coronary effluent as compared to active compound AH-1, measured immediately and 30 min after reperfusion (Figure 3).
Figure 3: Effect of Ajoene on LDH release. LDH was estimated in coronary effluent after stabilization (Basal). Immediately (Imm’Rep.) and 30 min after reperfusion (30’ Rep.). Values are expressed as mean ± SEM. a = p˂0.05 vs. Sham control; b = p˂0.05 vs. Control; c = p˂0.05 vs. Standard. ANOVA followed by Tukey’s multiple comparison test
Effect of ajoene on release of creatine kinase (CK-MB)
Various extracts of A. humile leaves viz. petroleum ether, chloroform, acetone and methanol were evaluated on ischemia and reperfusion induced increase in release of CK-MB measured in coronary effluent collected after 5 min of reperfusion. Similarly, among all the extracts chloroform extract of A. humile leaves and the isolated fraction F4 from chloroform extract significantly reduced the release of CK-MB in coronary effluent. Further, the active principle AH-1 isolated from fraction F4 of chloroform extract significantly attenuated ischemia- and reperfusion-induced increase in the release of CK-MB in coronary effluent collected after 5 min of reperfusion. Moreover, treatment with ramipril (1 mg/kg) markedly reduced the release of CK-MB in coronary effluent as compared to the active compound AH-1, collected 5 min of reperfusion (Figure 4).

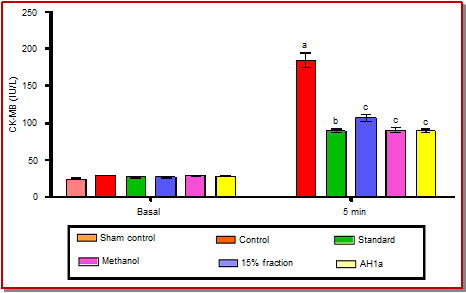

Figure 4: Effect of Ajoene on CK-MB release. CK-MB was estimated in coronary effluent after stabilization (Basal) and 5 min after reperfusion (5’ Rep.). Values are expressed as mean ± SEM. a = p˂0.05 vs. Sham control; b = p˂0.05 vs. Control; c = p˂0.05 vs. Standard. ANOVA followed by Tukey’s multiple comparison test
In the present study the test compound (AH-1) and standard drug significantly reduces the myocardial infarct size and restore release of LDH and CK-MB in coronary effluent compared to control group. Thus, in this study, the isolated compound AH-1 from A. humile has shown good myocardial preservative effect against ischemia and reperfusion induced myocardial infarction. This cardioprotective activity is attributed due to compound AH-1, which is an aliphatic sulfur containing compound. Organosulfurs are reported in various research articles as well-known therapeutic agents for cardiovascular disorders. Few of such compounds are S-allylcysteine, S-allylmercaptosysteine, diallyl sulphide, triallyl sulphide, glutathione, lipoic acid, N-acetyl-cysteine etc. (Vazquez Prieto and Miatello, 2010).
The most accepted mechanism of cardioprotective effect of organosulfurs follows oxidation of sulfur containing compound which perturb integrated metabolic path-ways and membrane linked functions that participates in essential metabolic and biosynthesis processes. It thus withstands against the free radicals as defence system and reduces the damage of myocardium (Borek, 2001). Moreover, the organosulfurs maintains the glutathione level which is itself an established mechanism of cardioprotective effect (Banerjee et al., 2003). Although exact mechanism of cardioprotective action of AH-1 is a matter of further investigation but the number of sulfur atoms present in AH-1 and their oxidation state is the most important factor that governs its myocardial preservative effect.
There is cardioprotectective effect of AH-1 by its antioxidant properties.
Ambrosio G, Tritto I. Reperfusion injury: Exeprimental evidence and clinical implication. Am Heart J. 1999; 138(2Pt2): S69-S75.
Banerjee SK, Mukherjee PK, Maulik SK. Garlic as an antioxidant: The good, the bad and the ugly. Phytother Res 2003; 17: 97-106.
Borek C. Antioxidant health effect of aged garlic extracts. J Nutr. 2001; 131: 1010S-15S.
Buckley N, Dawson A, Whyte I. Calcium channel blockers. Medicine 2007; 35: 599–602.
Ćirković I, Jovalekić M, Jegorović B. In vitro antibacterial activity of garlic and synergism between garlic and antibacterial drugs. Arch Biol Sci. 2012; 64: 1369-75.
Cruickshank JM. Beta-blockers and heart failure. Indian Heart J. 2010; 62: 101–10.
Dobhal Y, Parcha V, Dhasmana DC. Cardioprotective potential of Allium humile leaves extract. Orient Pharm Exp Med. 2013, 6 pages, DOI 10.1007/s13596-013-0115-5.
Dobhal Y, Parcha V, Dhasmana DC. Evaluation of cardioprotective potential of methanolic extracts and its fractions of Allium humile leaves. APS. 2013; 2: 459-63.
Hausenloy DJ, Yellon DM. New direction for protecting the heart against ischaemic reperfusion injury: Targeting the reperfusion injury salvage kinase (RISK)-pathway. Cardiovasc Res. 2004; 61: 448-60.
Ili´c D, Nikolić V, Stanković M, Nikolić L, Stanojević L, Mladenović-Ranisavljević I, Šmelcerović A. Transformation of synthetic Allicin: The influence of ultrasound, microwaves, different solvents and temperatures, and the products isolation. Sci World J. 2012; Article ID 561823, 7 pages.
Kloner RA, Dai W. Glycoprotein IIb/IIIa inhibitors and no-reflow. J Am Coll Cardiol. 2004; 2: 284-86.
Laurence L, Brunton ED. Renin and angiotensin. In: Goodman and Gilman’s The pharmacological basis of therapeutics. Jackson EK. 11 ed. McGraw-Hill, 2006.
Marzilli M, Orsini E, Marraccini P, Testa R. Beneficial effects of intracoronary adenosine as an adjunct to primary angioplasty in acute myocardial infarction. Circulation 2000; 101: 2154-59.
Mc Quaid KR, Laine L. Systematic review and meta-analysis of adverse events of low-dose aspirin and clopidogrel in randomized controlled trials. Am J Med. 2006; 119: 624-38.
Mitra B, Panja M. Myocardial metabolism: Pharmacological manipulation in myocardial ischaemia. JAPI. 2005; 53: 552-59.
Morrison LZ, Verbeck PR, McDonald AC, Sawadsky BV, Cook DJ. Mortality and prehospital thrombolytics for acute myocardial infarction: A meta-analysis. JAMA. 2000; 283: 2686-92.
Nautiyal S, Maikhuri RK, Rao KS, Saxena KG. Medicinal plant resources in Nanda biosphere reserve in the central Himalaya. J Herb Spice Med Plants. 2001; 8: 47-64.
Tanaka M, Terry RD, Mokhtari GK, Inagaki K, Koyanagi T, Kofidis T, Mochly-Rosen D, Robbins RC. Suppression of graft coronary artery disease by a brief treatment with a selective ePKC activator and a dPKC inhibitor in murin cardiac allografts. Circulation 2004; 110: II194-99.
Taylor F, Ward K, Moore TH, Burke M, Davey Smith G, Casas JP, Ebrahim S. Statins for the primary prevention of cardiovascular disease. In: Taylor, Fiona. Cochrane database Syst. Rev. (1): CD004816, 2011.
Tuunanen H, Engblom E, Naum A, Nagren K, Scheinin M, Hesse B Juhani Airaksinen KE, Nuutila P, Iozzo P, Ukkonen H, Opie LH, Knuuti J. Trimetazidine, a metabolic modulator, has cardiac and extracardiac benefits in idiopathic dilated cardiomyopathy. Circulation 2008; 118: 1250-58.
Uniyal SK, Singh KN, Jamwal P, Lal B. Traditional use of medicinal plants among the tribal communities of Chhota Bhangal, Western Himalayan. J Ethnobiol Ethnomed. 2006; 2: 1-14, 21.
Vaden TL, Qin Y, Wjcik K, Li CQ, Shao ZH, Anderson T, Becker LB, Hamann KJ. Reperfusion and simulated ischaemia initiates apoptosis injury in chick cardiomyocytes. Am J Physiol Heart Cir Physiol. 2003; 284: H141-50.
Vazquez Prieto MA, Miatello RM. Organosulphur compounds and cardiovascular diseases. Mol aspects Med. 2010; 31: 540-46.
