Antidiarrheal and antispasmodic activities of Polygonum bistorta rhizomes are mediated predominantly through K+ channels activation
Abstract
Polygonum bistorta is a popular medicinal herb used to treat diarrhea. This study provides pharmacological basis to its folk use in diarrhea using in vivo and in vitro assays. Administration of P. bistorta rhizomes extract to mice offered protection against castor oil-induced diarrhea at 300-1,000 mg/kg and was found safe up to the dose of 5 g/kg. In isolated rabbit jejunum, the extract caused a dose-dependent relaxation of spontaneous and low K+ (25 mM)-induced contractions with weak effect against high K+ (80 mM). In tissues pretreated with glibenclamide or tetraethylammonium chloride (TEA), the relaxant effect of the extract was markedly inhibited by TEA only. While verapamil showed complete relaxation of spontaneous, low K+, low K+ with TEA and high K+-induced contractions. In guinea-pig ileum, mild atropine-sensitive effect was observed. This study indicates that P. bistorta possesses anti-diarrheal and antispasmodic activities mediated predominantly through K+-channels activation along with weak Ca++ antagonist effect.
Introduction
Polygonum bistorta (Synonym; P. vivparum) belongs to family Polygonaceae, is locally known as Anjabar. It is commonly found in marshy places, in alpine areas as Chitral, Gilgit, Swat and Ladakh. P. bistorta is a small perennial shrub with woody root stock and 10-30 cm stem where leaves are 3.5-5 cm, linear, short pointed minutely round with sharp base give the shape of heart. Flowers are pink in color and solitary erect (Baquer, 1989). This shrub is known to be effective in adenopathy, amenorrhea, cancer, carbuncle, colitis, congestion, cramp, diarrhea, dysentery, dysmenorrhea, dyspepsia, epilepsy, fever, rhinitis sore throat and wound healing (Duke et al., 2002).
Phytochemical investigations revealed the presence of gamma-sitosterol, beta-sitosterol, beta-sitosterone, friedelin and cycloartane type triterpenoids like, 24(E)-ethylidenecycloartanone and 24(E)-ethylidenecycloartan-3alpha-ol (Manoharan et al., 2005), and some tannin-related compound, bistortaside A (Liu et al., 2006) in P. bistorta as plant constituents.
bistorta has also been studied for its anti-inflammatory (Duwiejua et al., 1999), CNS depressant (Datta et al., 2004) and interferon like activities (Smolarz et al., 1999). In addition, the plant has also been found effective in snake bites (Viegi et al., 2003). This plant has been popularly used to treat diarrhea; however, to the best of our knowledge, there is no known scientific evidence to support its medicinal use in diarrhea. This study provides scientific basis to its folkloric medicinal use in hyperactive gut disorders like diarrhea.
Materials and Methods
Collection of plant material and preparation of the crude extract
Rhizome of the plant was purchased from the local market, herbal medical store of Multan and was identified by the expert taxonomist Dr. Altaf A. Dasti at the Institute of Pure and Applied Biology, Bahauddin Zakariya University, Multan, marked from the herbarium while voucher and specimens were deposited in the same Institute. The plant material was cleaned and coarsely powdered by the electrically driven machine. Powdered material was soaked in 80% aqueous ethanol for 7 days with occasional shaking (Williamson et al., 1998). It was filtered through muslin cloth to remove out the debris and further subjected for filtration using Whatman Qualitative Grade no. I filter paper. The filtrate was evaporated under reduce pressure in rotary evaporator to get thick paste like mass of dark brown color. It was transferred to Petri-dish to remove remaining solvent by keeping in desiccators. Percentage yield was around 12% (w/w) and the extract was solubilized in distilled water for further experimentation.
Preliminary phytochemical analysis
The crude extract was screened for the possible presence of anthraquinones, coumarins, flavonoids, saponins, tannins and terpenes by following methods described Tona et al. (1998).
Chemicals and animals
Acetylcholine, atropine sulfate, potassium chloride and loperamide hydrochloride were purchased from Sigma Chemicals Co, St Louis, MO, USA. Glibenclamide and tetraethylammonium chloride (TEA) were purchased from Tocris, Ellisville, MO and RBI Chemicals Co, Natick, MA, USA respectively. All chemicals used were of the analytical grade available and solubilized in distilled water/saline except glibenclamide, which was dissolved in DMSO (1%). The vehicle used for solubilization was found inert on isolated tissue preparations in control experiments. Stock solutions of all chemicals were made fresh in normal saline on the day of the experiment.
BALB/c mice (weighing 20–25 g, n=40) and locally bred rabbits (weighing 1–1.5 kg, n=8) and guinea-pigs (400-550 g) of both sexes, were housed at the Animal House of Aga Khan University under controlled environmental conditions (23–25°C). The animals were fasted for 16-18 hours before the experiment, whereas they were given tap water and standard diet routinely. Experiments were performed with the rulings of the Institute of Laboratory Animal Resources, Commission on Life Sciences, National Research Council (National Research Council, 1996). This study was part of the M. Phil thesis of the first author which was approved by the Board of Studies, Bahauddin Zakariya University, Multan.
In vivo and in vitro experiments
Castor oil-induced diarrhea
Mice of either sex were housed at the animal house of Aga Khan University fasted for 16-18 hours before the starting of experiments. They were housed in individual cages and divided into five groups (n=5/group). One group was treated with saline (10 mL/kg, orally) as negative control, while other was administered loperamide (10 mg/kg, orally) as positive control. Further, three groups were given increasing doses (300-1,000 mg/kg) of P. bistorta extract orally. One hour after the treatment, all groups were given castor oil (10 mL/kg) orally with feeding needle. At four hours after castor oil administration, the cages were inspected for typical diarrheal droppings, their absence was considered as protection against diarrhea (Janbaz et al., 2014).
Acute toxicity testing
The animals were divided into three groups with five animals each. First two groups were treated with increasing doses (3 and 5 g/kg) of P. bistorta extract and were kept in animal cages with free access to food and water. Third group was given saline (10 mL/kg) as negative control. The mice were kept under regular observations for any acute toxicity signs for 6 hours, while the lethality was monitored up to 24 hours.
Rabbit jejunum and guinea-pig ileum preparation
Rabbits and guinea-pigs were starved for 16-18 hours and were sacrificed by cervical dislocation. The gut modulatory effects of the test material were studied by using isolated rabbit jejunum and guinea-pig ileum preparations respectively. Individual segments of 2-3 cm were suspended in 10 mL tissue organ baths containing Tyrode’s solution, maintained at 37°C and aerated by carbagen (a mixture of 95% oxygen and 5% of carbon dioxide). The Tyrode’s solution used in these experiments contained KCI 2.68, NaCI 139.9, MgCI2 1.05, NaHCO3 11.90, NaH2PO4 0.42, CaCl2 1.8 and glucose 5.55 in mM (pH 7.4). The response of crude extracts on intestinal preparations was recorded using isotonic transducers coupled with oscillograph data acquisition setup. Each tissue was allowed to equilibrate for at least 30 min before the addition of any drug and then stabilized with repeated administration of acetylcholine (Ach, 0.3 µM) at every 3-5 min interval, until similar responses were achieved. Under similar experimental conditions, guinea-pig ileum behaved as quiescent smooth muscle preparation and is considered more useful for the assessment of spasmogenic activity (Mehmood et al., 2011), while rabbit jejunum exhibits spontaneous rhythmic contractions, allowing testing the relaxant (spasmolytic) activity directly without the use of an agonist (Gilani et al., 2008; Khan et al., 2011; Rehman et al., 2013). The relaxant responses were quantified compared to the control spontaneous beating patent of isolated jejunal preparations. While the con tractile response of the test material were assessed as the percent of the maximum effect produced by ACh (0.3 or 1 µM).
Statistical analysis
All the data was expressed as mean ± standard error of mean (SEM, n=number of experiments) and the median inhibitory concentrations (IC50) with 95% confidence intervals (CI). The statistical parameter applied is Student’s t-test except in case of castor oil induced diarrhea where Chi-square-test was used. P<0.05 was considered as significant difference. Concentration-response curves were analyzed by non–linear regression using GraphPad program (San Diego, CA, USA).
Result and Discussion
Preliminary phytochemical analysis showed the presence of alkaloids, saponins, tannins and phenolic compounds as plant constituents. On account of medicinal use of P. bistorta in hyperactive gut disorders (Duke et al., 2002), it was first evaluated for its antidiarrheal activity against castor oil-induced diarrheal model in mice. Further to explore the scientific basis for its observed antidiarrheal activity, the test material was subjected studied for its spasmolytic effect on isolated tissues of rabbit jejunum and guinea pig ileum (Mehmood and Gilani, 2010; Shah et al., 2011; Janbaz et al., 2014; 2015a).
When administered to mice, P. bistorta offered protection against castor oil-induced diarrhea at a dose range of 300-100 mg/kg, similar to the effect of loperamide, a standard antidiarrheal agent (Reynolds et al., 1984) as shown in Table I. It was also found safe in mice at the highest tested doses of 3 and 5 g/kg both for acute toxic effects signs and mortality.
Table I: Antidiarrheal effect of the crude extract of P. bistorta against castor oil-induced diarrhea in mice
| Group | Treatment | Total No. of mice/group | No. of mice with diarrhea after 5 hours | % Protection |
|---|---|---|---|---|
| 1 | Saline (10 mL/kg) plus castor oil (10 mL/kg) | 5 | 5 | 0 |
| 2 | Loperamide (10 mg/kg) plus castor oil(10 mL/kg) | 5 | 0b | 100 |
| 3 | Extract (300 mg/kg) plus castor oil (10 mL/kg) | 5 | 4 | 80 |
| 4 | Extract (600 mg/kg) plus castor oil (10 mL/kg) | 5 | 3a | 40 |
| 5 | Extract (1000 mg/kg) plus castor oil (10 mL/kg) | 5 | 2a | 60 |
ap<0.05 and bp<0.01 versus Group No. 1 (Chi-square-test)
Castor oil administration in mice is known to cause a significant increase in intestinal fluid contents and promotes diarrhea through ricinoleic acid, its active constituent, which is formed by hydrolysis of oil (Iwao and Terada, 1962). It also alters transport of electrolytes and water through small bowel (Gaginella and Phillips, 1975) and generates massive contractions in transverse and distal colon (Croci et al., 1997). Any test material having inhibitory effect against castor oil-induced diarrhea is considered to possess marked antidiarrheal activity.
The plant extract when tested on spontaneously contracting rabbit jejunum for its possible gut inhibitory property, it caused inhibition of contractions. The spasmolytic effect was found dose-dependent with IC50 value of 7.3 mg/mL (4.5-11.8; 95% CI, n=3), similar to the effect of verapamil, a standard calcium channel blocker (Lee et al., 1997), which also inhibited spontaneous contractions with IC50 value of 0.3 µM (0.2-0.4, n=4) as shown in (Figure 1 and 2).
Figure 1: Tracing showing the concentration-dependent inhibitory effect of the crude extract of P. bistorta rhizomes (Pb.Cr) and verapamil on isolated spontaneously contracting rabbit jejunum preparations

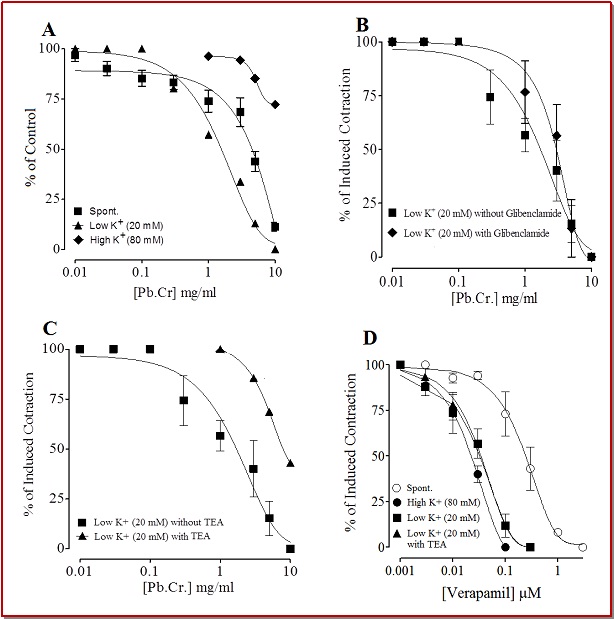

Figure 2: The concentration-dependent inhibitory effect of the crude extract of P. bistorta rhizomes (Pb.Cr) against (A) spontaneous, low K+ (20 mM) and high K+ (80 mM)-induced contractions, (B) low K+-induced contractions without and with glibenclamide (10 µM) and (C) low K+-induced contractions without and with tetraethylammonium chloride (TEA), while (D) shows concentration-dependent inhibitory effect of verapamil against low K+, low K+ with TEA and high K+ (80 mM)-induced contractions in isolated rabbit jejunum preparations. Values are expressed as mean ± S.E.M, n = 3-6
Against K+-induced contractions, P. bistorta extract caused complete relaxation of low K+ (20 mM)-induced contractions with respective IC50 value of 1.9 µM (0.9-3.1, n=5), while it had weak effect against high K+ (80 mM) with resultant maximum relaxation of only 31.0 ± 1.2% (mean ± SEM) at the highest tested concentration of 10 mg/mL. Interestingly, when the relaxant effect of the extract was restudied in the presence of TEA, a non-selective K+ channel blocker (Cook, 1989) or glibenclamide, an ATP-dependent K+ channel blocker (Frank et al., 1994), it was markedly inhibited with remaining maximum relaxation of 63.0 ± 2.2% vs. 100% (its effect without TEA) at highest tested concentration of 10 mg/mL.
In smooth muscle contractions and gastrointestinal secretory system, the role of multiple types of physiological mediators, such as acetylcholine, histamine, substance P, cholecystokinins, prostaglandins and 5-hydroxytryptamine (Pasricha, 2006), and some ion channels like K+ or Ca++ (Quast and Cook, 1989; Farre et al., 1991), is well established. It has been observed that most of the medicinal plant and plant-derived test compounds exhibit inhibitory effect through K+ channel activation (Gilani et al., 2008; Mehmood et al, 2015; Quast, 1992) or Ca++ channel blockade like mechanisms (Shah et al., 2011; Janbaz et al., 2014). Challenge of isolated tissues with low K+ (25 mM) and high K+ (80 mM) induces depolarization which is usually practiced to distinguish K+ channel opening and Ca++ channel blocking like activities (Mehmood et al., 2015). Through the presence of K+ channels and voltage dependent Ca++ channels in epithelial cells and smooth muscles of intestine, K+ channel openers (increase in K+ efflux) and Ca++ antagonists (inhibition of Ca++ entry) cause inhibitory effect on smooth muscle by decreasing intracellular free Ca++ through respective mechanisms of membrane hyperpolarization (Vogalis, 2002; Lee et al., 1997). The inhibitory effect of P. bistorta rhizomes extract was markedly inhibited in the presence TEA compared to its effect in the presence of glibenclamide, indicating the predominant involvement of non-specific K+ channels in its exhibited spasmolytic action. As K+ channels and abundantly present in intestinal smooth muscles and known for their inhibitory influence in hypermotile gut disorders (Vogalis, 2002; Poggioli et al., 1995).
The concentration of K+ >30 mM, regarded as high K+, is known to cause smooth muscle contractions through opening of voltage-dependent Ca++ channels (Karaki and Wiess, 1983). Thus, a substance that inhibits high K+-provoked contractions is considered a blocker of Ca++ influx (Farre et al., 1991). The Ca++ antagonist effect on the part of plant extract was found week which was evident by its inhibitory effect against high K+-induced contractions (Figure 1). However, the involvement of weak Ca++ antagonist-like effect cannot be ignored in the observed antidiarrheal efficacy of P. bistorta rhizomes extract in mice as the Ca++ antagonists are known for their antidiarrheal potential (Lee et al., 1997).
On the basis of presence of tannins and the observed maximum protection against diarrhea on relatively higher dose, the extract was screened on isolated guinea pig ileum for the presence of any gut stimulatory activity. In ileum, a quiescent gut preparation, the extract elicited mild stimulant response with maximum effect of 22.0 ± 5.3% (relative to 100% control response of acetylcholine at 0.3 µM) only at single concentration of 1 mg/mL, which was blocked when repeated in the presence of atropine (Figure 3).

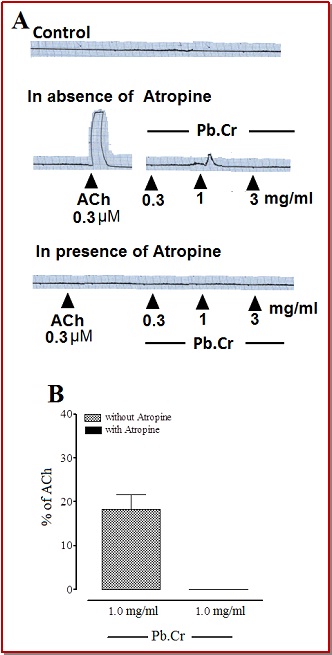

Figure 3: Typical tracing (A) and bar chart (B) represent the inhibitory effect of the crude extract of P. bistorta rhizomes (Pb.Cr) in the absence and presence of atropine (0.1 µM) on base line status of isolated guinea-pig ileum. Values are expressed as mean ± S.E.M, n = 3-5
Acetylcholine is released by the nerve endings of parasympathetic enteric nerve endings and plays an important role in regulation of gut motility, similarly the activation of muscarinic receptors in the gut are also known for their gut accelerating properties (Brown and Taylor, 1996). Since atropine is an antagonist at muscarinic receptors sites (Gilani et al., 1997), blocked the stimulant effect, which indicates the presence of some cholinergic-like constituents in P. bistorta rhizomes extract which might be presumably meant by the nature to offset an excessive gut relaxant effect, however, further investigation is required to prove this speculation.
Conclusion
These findings indicate that P. bistorta possesses antidiarrheal and antispasmodic activities mediated predominantly through TEA-sensitive K+ channels activation along with weak Ca++ antagonist like mechanism. Thus, this study provided a rational to the folkloric use of P. bistorta in diarrhea.
Acknowledgement
This study was carried out during electives of Mr. Muhammad Zeeshan Ali at the Department of Biological and Biomedical Sciences, Aga Khan University, Karachi with partial financial support from the Higher Education Commission, Government of Pakistan. We would like to acknowledge the contribution of Prof. Altaf A. Dasti, a taxonomist at the Institute of Pure and Applied Biology, Bahauddin Zakariya University, Multan for his assistance in identification of the plant material used in this study.
References
Baquer SR. Medicinal and poisonous plants of Pakistan, Karachi, Printas, 1989, p 356.
Brown JH, Taylor P. Muscarinic receptor agonists and antagonists. In: Goodman & Gilman’s the pharmacological basis of therapeutics. Brunton LL, Lazo JS, Parker KL (eds). 11th ed. New York, McGraw-Hill., 2006, pp 183–200.
Cook NS. Effect of some potassium channel blockers on contractile responses of the rabbit aorta. J Cardiovasc Pharmacol. 1989;13: 299–306.
Croci T, Landi M, Elmonds-Alt X, Le Fur G, Maffrand JP, Manara L. Role of tachykinins in castor oil-induced diarrhea in rats. Br J Pharmacol. 1997; 121: 375-80.
Datta BK, Datta SK, Chowdhury MM, Khan TH, Kundu JK, Rashid MA, Nahar L, Sarker SD. Analgesic, anti-inflammatory and CNS depressant activities of sesquiterpenes and a flavonoid glycoside from Polygonum viscosum. Pharmazie 2004; 59: 222-25.
Duke JA, Bogenschutz-Godwin MJ, Du Celliar J, Duke PAK. Adiantum capillus-veneris L. In: Handbook of medicinal herbs. 2nd ed. Boca Raton, CRC Press, 2002, pp 77-78.
Duwiejua M, Zeitlin IJ, Gray AI, Waterman PG. The Anti-inflammatory compounds of Polygonum bistorta: Isolation and characterization. Planta Med. 1999; 65: 371-74.
Farre AJ, Colombo M, Fort M, Gutierrez B: Differential effects of various Ca++ antagonists. Gen Pharmacol. 1991; 22: 177-81.
Frank H, Puschmann A, Schusdziarra V, Allescher HD. Functional evidence for a glibenclamide-sensitive K+ channel in rat ileal smooth muscle. Eur J Pharmacol. 1994; 271: 379-86.
Gaginella TS, Phillips SF. Ricinoleic acid: Current view of ancient oil. Dig Dis Sci. 1975; 20: 1171-77.
Gilani AH, Mehmood MH, Janbaz KH, Khan A, Saeed SA. Ethnopharmacological studies on antispasmodic and antiplatelet activities of Ficus carica. J Ethnopharmacol. 2008; 119: 1-5.
Gilani AH, Shaheen F, Christopoulos A, Mitchelson F. Interaction of ebeinone, an alkaloid from Fritillaria imperialis, at two muscarinic acetylcholine receptor subtypes. Life Sci. 1997; 60: 535-44.
Iwao I, Terada Y. On the mechanism of diarrhea due to castor oil. Jpn J Pharmacol. 1962; 12: 137-45.
Janbaz KH, Hassan W, Mehmood MH, Gilani AH. Antidiarrheal and antispasmodic activities of Adiantum capillus-veneris Linn. Bangladesh J Pharmacol. 2015; 10: 222-29.
Janbaz KH, Hassan W, Mehmood MH, Gilani AH. Antidiarrheal, antispasmodic and bronchodilator activities of Pistacia integrrima are mediated through dual inhibition of muscarinic receptors and Ca++ influx. Sci Tech Dev. 2015a; 34: 52-59.
Janbaz KH, Shabbir A, Mehmood MH, Gilani AH. Pharmacological basis for the medicinal use of Rhus coriaria in hyperactive gut disorders. Bangladesh J Pharmacol. 2014; 9: 636-44.
Karaki H, Wiess G. Mini-review: Calcium release in smooth muscles. Life Sci. 1983; 42:111–12.
Khan A, Rehman NU, AlKharfy KM, Gilani AH. Antidiarrheal and antispasmodic activities of Salvia officinalis are mediated through activation of K+ channels. Bangladesh J Pharmacol. 2011; 6: 110-16.
Lee CW, Sarna SK, Singaram C, Casper MA. Ca++ channel blockade by verapamil inhibits GMCs and diarrhoea during small intestinal inflammation. Am J Physiol. 1997; 273: 785-94.
Liu XQ, Hua HM, Liu J, Chen FK, Wu LJ. A new tannin-related compound from the rhizome of Polygonum bistorta L. J Asian Nat Prod Res. 2006; 8: 299-302
Manoharan KP, Benny TK, Yang D. Cycloartane type triterpenoids from the rhizomes of Polygonum bistorta. Phytochemistry 2005; 66: 2304-08.
Mehmood MH, Munir S, Khalid UA, Asrar M, Gilani AH. Antidiarrhoeal, antisecretory and antispasmodic activities of Matricaria chamomilla are mediated predominantly through K+-channels activation. BMC Compl Altern Med. 2015; 15: 75.
Mehmood MH, Aziz N, Ghayur MN, Gilani AH. Pharmacological basis for the medicinal use of psyllium husk (ispaghula) in constipation and diarrhea. Dig Dis Sci. 2011; 56: 1460-67.
Mehmood MH, Gilani AH. Pharmacological basis for the medicinal use of black pepper and piperine in gastrointestinal disorders. J Med Food. 2010; 13: 1086-96.
National Research Council. Guide for the care and use of laboratory animals. Washington, National Academy Press, 1996, pp 1-7.
Pasricha PJ. Treatment of disorders of bowel motility and water flux In: Goodman & Gilman’s the pharmacological basis of therapeutics. Brunton LL, Lazo JS, Parker KL (eds). 11th ed. New York, McGraw-Hill., 2006, pp 983-1008.
Poggioli R, Benelli A, Arletti R, Cavazzuti E, Bertolini A. K+ channel openers delay intestinal transit and have antidiarrhoeal activity. Eur J Pharmacol. 1995; 287: 207-09.
Quast U, Cook NS. Moving together: K+ channel openers and ATP-sensitive K+ channels. Trends Pharmacol Sci. 1989;10: 431-35.
Quast U. Potassium channel openers: Pharmacological and clinical aspects. Fund Clin Pharmacol. 1992; 6: 279-93.
Rehman NU, Khan A, Fatima U, Akram M, Al-Musayeib N, Al-Massarani S, El-Gamal A, Gilani AH. Presence of laxative and antidiarrheal activities in Periploca aphylla: A Saudi medicinal plant. Int J Pharmacol. 2013; 9: 190-96.
Reynolds IJ, Gould RJ, Snyder, SH. Loperamide: Blockade of calcium channels as a mechanism for antidiarrheal effects. J Pharmacol. 1984; 231: 628-32.
Shah AJ, Begum S, Hassan SI, Ali SN, Siddiqui BS, Gilani AH. Pharmacological basis for the medicinal use of Psidium guajava leave in hyperactive gut disorders. Bangladesh J Pharmacol. 2011; 6: 100-06.
Smolarz HD, Skwarek T. The investigations into the interferon-like activity of Polygonum L. genus. Acta Pol Pharm. 1999; 56: 459-62.
Tona L, Kambu K, Ngimbi N, Cimanga K, Vlietinck AJ. Antiamoebic and phytochemical screening of some Congolese medicinal plants. J Ethnopharmacol. 1998; 61: 57–65.
Viegi L, Pieroni A, Guarrera PM, Vangelisti R. A review of Vogalis F. Potassium channels in gastrointestinal smooth muscle. J Aut Pharmacol. 2000; 20: 207-19.
Williamson EM, Okpako DT, Evans FJ. Selection, preparation and pharmacological evaluation of plant material. Chichester, John Wiley & Sons, 1998, pp 15–23.
